Four Way Ball Valve - 4 Way Ball Valve (Multiport Ball Valve)

Full Bore / Regular (Reduce) Bore 4 Way Ball Valve Manufacturers
Flanged / Screwed / Socket / Butt Weld End Connection 4 Way Ball Valve Manufacturer
Manual Lever / Gear / Pneumatic Operated Four Way Ball Valve Manufacturers

Dharmi Engineers offers a tremendous value in multi-port three and four way valves. Three Way / Four Way Ball Valves a Specialty of Dharmi Engineers, a leading manufacturer and supplier of Ball Valve and Actuation. We have a wide range of Three Way & Four Way Ball Valve in Carbon Steel, Stainless Steel, Cast Iron and others metal on special request. Our Three Way Ball Valve & Four Way Ball Valve selection covers Full Port & Regular (Reduce) Port, Flanged End, Screwed End, Socket Weld, Butt Weld (Welded Neck) End & Tri-Clover End with Manual Hand Lever, Gear or Pneumatic Operation.


4 Way Ball Valve
Hand Lever Operated
Rating - 150#
4 Way Ball Valve Drawing Dimension Catalogue Download
4 Way Ball Valve
Pneumatic Operated
Rating - 150#
4 Way Ball Valve Pneumatic Actuator Operated Drawing Dimension Catalogue Download

4 Way Ball Valve Manufacturer Exporter Supplier Stokicest India

Pneumatic Actuator Remote Operted Four Way Ball Valve Manufacturer Exporter in India

4 Way Ball Valve Manufacturers Exporters Suppliers Stokicest in India

Four Way Double “L” Port
Stainless Steel 316 Ball Valve
Flanged End, Rating – 150#

Pneumatic Actuator Operated 4 Way Double L (X) Port
Valve Size - 6" x 150#

Four Way Double L (X) Port
Carbon Steel Ball Valve
Valve Size - 8" x 150#

4 Way Ball Valve Different Positions

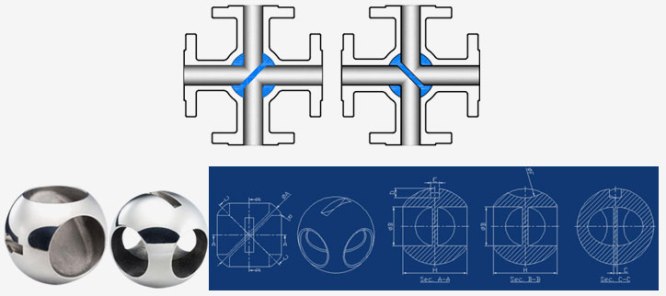

X Port (Double L) - 4 Way Ball Valve

4 Way X Port Double L Port Ball Valve Manufacturer Exporter in India

T Port - 4 Way Ball Valve

4 Way T Port Ball Valve Manufacturer Exporter in India

L Port - 4 Way Ball Valve

4 Way L Port Ball Valve Manufacturer Exporter in India

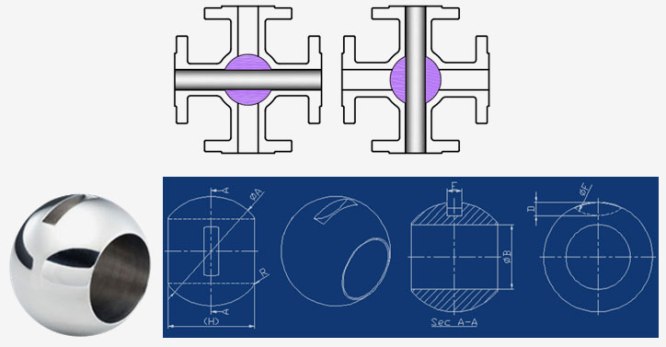

Straight Port - 4 Way Ball Valve

Four Way Ball Valve Manufacturer Exporter in India

4 Way Ball Valve Operation :

Dharmi Engineers Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. Dharmi Engineers also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation. We have wide range of Pnenumatic Actuator Operated 4 Way Ball Valve, Pneumatic Actuated Four Way Ball Valve, Remote Operated Four Way Ball Valve, Auto Shut Off 4 Way Ball Valve, Pneumatic Actuated  Way Ball Valve, Pneumatic Air Operated 4 Way Ball Valves, X Port Four Way Ball Valve Pneumaticaly.

4 Way Ball Valve Wide Range of Body Seat, Seal & Packing :

Dharmi Engineers Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.

4 Way Ball Valve Salient Features :

High Performance Ball Valve

Longer Smooth Life

Positive Shut off

Low Operating Torque

Quick in Action

No Lubrication

Compact Design

Low Pressure Drop

Simplicity

4 Way Ball Valve Design & Testing International Standard :

Valve Design

:

BS EN ISO 17292 (BS 5351) / ANSI B 16.34 / API 6D

Pressure Testing

:

BS EN ISO 12266 - Part II / API 598 / API 6D

Face To Face

:

Mfg. Standard

Flange Drilling

:

ANSI B 16.5 / BS 10 Table / DIN / IS 6392

Butt Weld End

:

ANSI B 16.25

Socket Weld End

:

ANSI B 16.11

Screwed End

:

ANSI B 1.20.1(BSP/NPT)

4 Way Ball Valve Material of Construction :

Body / End Connector Piece

Stem

Cast Iron to ASTM A 126 Class B
IS 210 GR. FG 200 / 220 / 260

Ductile Iron to ASTM A 536 Grade 65-45-12

Cast Carbon Steel to ASTM A 216 GR. WCB

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

Hast Alloy B / C

ASTM A 351 GR. CN 7M (Alloy 20)

AISI 410 (S.S. 410 – 13% Cr. Steel)

AISI 304 (S.S. 304)

AISI 316 (S.S. 316)

AISI 304L (S.S. 304L)

AISI 316L (S.S. 316L)

Hast Alloy B/C

Alloy 20

Ball

Ball Seat / Gland Seal / Stem Seal

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

Hast Alloy B / C

ASTM A 351 GR. CN 7M (Alloy 20)

P.T.F.E. – Virgin

P.T.F.E. – Glass Filled

P.T.F.E. – Carbon Filled

Grafoil

Wide Range of Industrial Ball Valve

Cast Iron Ball Valve

Cast Carbon Steel Ball Valve

Cast Stainless Steel Ball Valve

Forged Steel Ball Valve

Single Piece Design Ball Valve

Two Piece Design Ball Valve

Three Piece Design Ball Valve

High Pressure Ball Valve

Two Way Ball Valve

Three Way Ball Valve

Four Way Ball Valve

High Performance Ball Valve

Jacketed Ball Valve

Flush Bottom Ball Valve

Gear operated Ball Valve

Pneumatic Ball Valve

I.C. Ball Valve (Investment Casting)

Multiport Ball Valve

Mixing & Diverting Type Ball Valve

Fire Safe Design Ball Valve

Zero Leakage Ball Valve

Our manufacuting range covers 4 Way Ball Valve, 4 Way Ball Valves, 4 Way Ball Valve Manufacturer, 4 Way Ball Valve Manufacturers, 4 Way Ball Valve Exporter, 4 Way Ball Valve Supplier, 4 Way Ball Valve Suppliers, 4 Way Ball Valve Stockiest, 4 Way Double L Port Ball Valve, 4 Way X Port Ball Valve, 4 Way L Port Ball Valve, 4 Way T Port Ball Valve, 4 Way Pneumatic Ball Valve, Pneumatic Operated 4 Way Ball Valve, Actuator Operated 4  Way Ball Valve, Pneumatic 4 Way Ball Valve, Pneumatic 4 Way Valve, 4 Way Ball Valve Flanged End, 4 Way Ball Valve Screwed End, X Port Ball Valve, Multiport Ball Valve, Multiway Ball Valve, 4 Way Fire Safe Ball Valve, Four Way Ball Valve, Four Way Ball Valves, Four Way Ball Valve Manufacturer, Four Way Ball Valve Manufacturers, Four Way Ball Valve Exporter, Four Way Ball Valve Supplier, Four Way Ball Valve Suppliers, Four Way Ball Valve Stockiest, Four Way Double L Port Ball Valve, Four Way X Port Ball Valve, Four Way L Port Ball Valve, Four Way T Port Ball Valve, Four Way Pneumatic Ball Valve, Pneumatic Operated Four Way Ball Valve, Actuator Operated Four  Way Ball Valve, Pneumatic Four Way Ball Valve, Pneumatic Four Way Valve, Four Way Ball Valve Flanged End, Four Way Ball Valve Screwed End, X Port Ball Valve, Multiport Ball Valve, Multiway Ball Valve, Four Way Fire Safe Ball Valve, 4 Way Ball Valve India, Four Way Ball Valve Exporter India
