Globe
Valve |
|
Bolted Bonnet, OS & Y Type, Rising Stem Globe Valve Manufacturers
ASA Type Globe Valve / ND Design Globe Valve Manufacturers
Hand Wheel / Gear / Pneumatic Actuator Operated Globe Valve
Manufacturers
Flanged / Screwed (BSP/NPT) / Socket Weld / Butt Weld / Ring Joint End
Globe Valve Exporter
Pressure Rating 150# to 1500# & PN 10 to PN 100
What is Globe Valve?
The Globe Valve is widely used and suitable for On / Off or
Regulating fluid flow. Main single seating in globe valves is
parallel to line of flow and the flow pattern is offset type,
not a straight line through flow as gate valve or ball valve.
This design affords a better closure than a gate valve. The
change in direction of fluid flow produces increased resistance
and considerable pressure drop. Because the flow is directed
against the disc in a symmetrical fashion, there is very little
wear on the valve parts and is one of the easiest valves to
repair.
Globe Valve can be Bolted Bonnet construction or Union
Bonnet Types. Bolted bonnet Globe Valves are very easy to
maintenanace. Valve seat can be intergal or replaceable as
per application suit. 3 Way Globe also an option for Mixing
& Diverting application operated by manual, pneumatic or
electrical.
Globe valves are also available with range of operation such as
Manual Hand Wheel operated / Gear operated / Pneumatic Diaphragm
Actuator operated / Pneumatic Cylinder Actuator Operated /
Electrical Actuator operated / Motorized Actuator Operated.
Globe Valve also can supplied with wide range of Disc such as
Plug Type Disc, Flat Disc, Regulating Disc, Soft Seated Disc,
Guided Disc etc to suit various application. Dharmi Engineers
manufacturing & exporting wide range of Industrial Globe
Valve. Dharmi Engineers also offer Three Way Globe Valve (Mixing
& Diverting Type Globe Valve) for various industrial
applications.
What is Rising Stem?
Outside
Screw & Yoke (OS & Y) design keeps the stem threads
outside the valve and is recommended where high temperatures,
corrosives, and solids in the line might damage the stem
threads inside the valve. When Globe Valve will open, the stem
extends with hand wheel indicates the position of valve
opening.

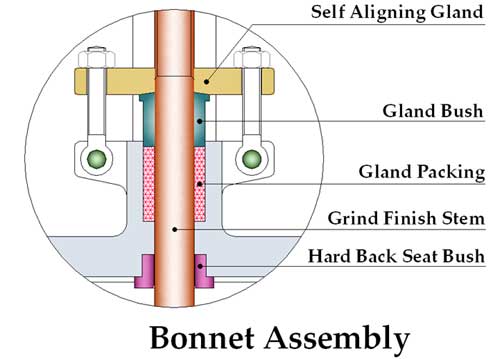

What is Valve Trim?
A
trim means internal working parts of valves. In Globe Valves the
Stem (Spindle), Seat Ring, Disc, Disc Nut, Back Seat Bush, Gland
Bush is trim.
What is Integral Seat?
These
types seats are integral with body casting. Machined into the
body casting.
What is Renewable Seat?
Separate
Seat Rings that screw into the valve body, which is called as
Renewable Seats. ____________________________________________________________________________________________________________
|
|
Dharmi Engineers Globe Valves are Outside Screw, Rising Stem, Bolted Bonnet Construction, threads are away from the line fluid and easy to lubricate.
Dharmi Globe Valves are generally available with Plug Type Disc, which is designed to give leak tight seating over a long period of in built wear life. Dharmi Globe valves body seat ring is shoulder type, threaded body seat ring which has large taper area that is for ample seating. Two nos. slots are provided on body seat ring, which is for easy removal for servicing at site. Welded type seat ring & Integral seat ring are also available in Dharmi Globe Valve. All Globe Valve stem is made from solid one piece construction. The yoke bush of Globe Valve has a long thread engagement for accurate stem alignment. The standard range of Dharmi Globe Valve is sizes of up to 12 (300mm).
We are
manufacturers and exporters of Globe Valve and our range of Globe
Valve covers, Steam Globe Valve, Jacketed Globe Valve, Extended
Bonnet Globe Valve, WCC/WCB/LCB/LCC/CF8/CF8M/CF3/CF3M/CN7M Globe
Valve, Bolted Bonnet Globe Valve, OS and Y Globe Valve, Pneumatic
Globe Valve, 3 Way Globe Valve, Forged Globe Valve, Forged Stainless
Steel Globe Valves, Steam Jacketed Globe Valves
|
|
|
|

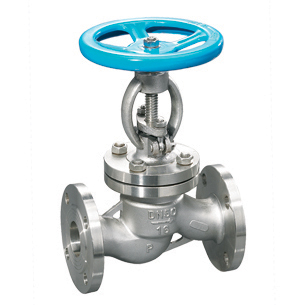

Bolted Bonnet, I.C. Globe Valve
(ND Design) OS & Y Type,
Rising Stem
Design Standard: ND, DIN Standard
Size Range: 1 to 12
Pressure Rating: PN 6 / PN 10 / PN 16 / PN 25 / PN 40
End Connection Flanged / Butt Weld / Ring Joint End |
|
|
|
|
Forged Carbon Steel Globe Valve
OS & Y Type, Rising Stem, Bolted Bonnet
Design Standard: BS 5352/API602/ASME B 16.34
Pressure Rating: 800# // 1500#
Size Range: ½ to 2 // ½ to 1½
End Connection Screwed / Socket Weld / But Weld End |

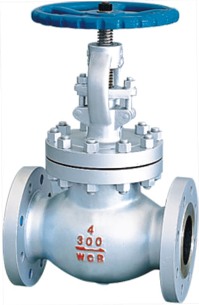

Bolted Bonnet, Globe Valve
OS & Y Type, Rising Stem
Design As Per BS 1873 Standard
Size Range ½ to 12
Pressure Rating - 125# / 150# / 300# / 600#
End Connection Flanged / Butt Weld / Ring Joint End |
|
|
|
|
|
|
Pneumatic Cylinder Actuator Operated Globe Valve (On/Off Type
Globe Valve)
|
Spring & Diaphragm Actuated Operated Globe Valve (Pneumatic Control Valve)
|
Motorised Electrical Actuator Operated 3 Way Globe Control Valve
|
Motorised Electrical Actuator Operated 2 Way Globe Control Valve
|
|
|
|
Generally Dharmi Engineers offer Globe Valve with Plug Type Disc. Dharmi Engineers also offer Globe Valve with different types of disc arrangement as per
below :
|
|

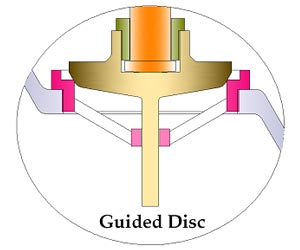

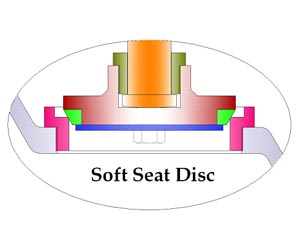

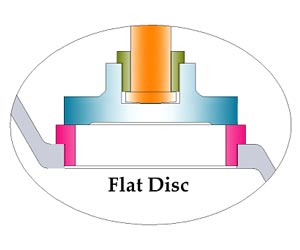

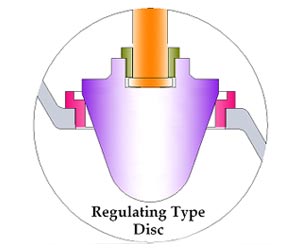

Various Disc Design
of Globe Valve Disc/Plug |
|
_________________________________________________________________________________________________
|
| Globe
Valve Dimensions: Manufacturing Standard BS 1873 |
Globe
Valve Dimensions - T Type Pattern, Bolted Bonnet, Rising
Stem, Rising Hand Wheel, Flanged End
Flange
Drilling & Dimensions - As Per ANSI B 16.5, Class 150
(Other Standrad Drilling Available on Request) |
| Size
(INCH) |
1" |
1-1/2" |
2" |
2-1/2" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
| Size
(DN) |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
| F
to F |
127 |
165 |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
623 |
699 |
| Flange
O.D. |
108 |
127 |
152.4 |
177.8 |
190.5 |
228.6 |
254 |
279 |
343 |
406 |
483 |
| Flange
PCD |
79.3 |
98.4 |
120.6 |
139.7 |
152.4 |
190.5 |
215.9 |
241.3 |
298.4 |
362 |
431.8 |
| R.F.
Dia. |
50.8 |
73 |
92.1 |
104.7 |
127 |
157.2 |
185.6 |
215.9 |
269.9 |
323.8 |
381 |
| No.
of Hole |
04 |
04 |
04 |
04 |
04 |
08 |
08 |
08 |
08 |
12 |
12 |
| Hole
Dia. |
15.8 |
15.8 |
15.8 |
19 |
19 |
19 |
19 |
22.2 |
22.2 |
25.4 |
25.4 |
|
|
|
Globe
Valve Dimensions - T Type Pattern, Bolted Bonnet, Rising
Stem, Rising Hand Wheel, Flanged End
Flange
Drilling & Dimensions - As Per ANSI B 16.5, Class 300
(Other Standrad Drilling Available on Request) |
| Size
(INCH) |
1" |
1-1/2" |
2" |
2-1/2" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
| Size
(DN) |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
| F
to F |
203 |
229 |
267 |
292 |
317 |
356 |
400 |
445 |
559 |
629 |
711 |
| Flange
O.D. |
124 |
155.4 |
165.1 |
190.5 |
209.5 |
254 |
279.4 |
317.5 |
381 |
444.5 |
520.4 |
| Flange
PCD |
88.9 |
114.3 |
127 |
149.3 |
168.1 |
200.1 |
234.9 |
269.7 |
330.2 |
387.3 |
450.8 |
| R.F.
Dia. |
50.8 |
73 |
92.1 |
104.7 |
127 |
157.2 |
185.7 |
215.9 |
269.9 |
323.8 |
381.0 |
| No.
of Hole |
04 |
04 |
08 |
08 |
08 |
08 |
08 |
12 |
12 |
16 |
16 |
| Hole
Dia. |
19 |
22.2 |
19 |
22.2 |
22.2 |
22.2 |
22.2 |
22.2 |
25.4 |
28.6 |
31.8 |
|
| ***
Contact Factory Fore More Size, More Rating, Other
Standard Globe Valve Dimensions |
|
Materials Temperature Withstand Capacity as per ANSI B 16.34 Standard |
|
|
Rating
|
: |
150# / 300# / 600#
|
- |
ASTM A 216 GR. WCB from 0° C. to 425° C
|
|
|
Rating
|
: |
600#
|
- |
ASTM A 217 GR. WC6 from 0° C. to 593° C
|
|
|
Rating
|
:
|
150# / 300#
|
-
|
ASTM A 351 GR. CF 8 from 0° C. to 537°
C
|
|
|
Salient
Features of Globe Valves: |
|
|
Body & Bonnet made from high quality casting with liberal sections. The castings are precision machined for high performance
|
|
|
Rising Stem & Rising Hand Wheel Construction.
|
|
|
Lapped Seat & Disc face for leak tightness.
|
|
|
Die moulded Graphite (Grafoil) Packing Rings, controlled clearance between stem, gland and bonnet bushing for guaranteed low emissions and also suitable for higher temperature.
|
|
|
Deep stuffing box is providing for tightness and maximum long packing life.
|
|
|
Swinging Eye Bolts facilitate easy access to the stuffing box.
|
|
|
Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.
|
|
|
Seat Ring Screwed in to the body (Replaceable Type) or integral type.
|
|
|
Stellited Disc, Seat Ring & Back Seat can also be offered on special request.
|
|
|
Higher Pressure & Higher Size Valves are provided with Thrust Bearings and also with Gear drive arrangements.
|
|
|
|
|
|
|
Design
& Testing International Standard for Globe Valve: |
|
|
Valve Design
|
: |
BS 1873 / ANSI B 16.34 |
|
|
Pressure
Testing
|
: |
BS 6755-I |
|
|
Face To Face
|
: |
ANSI B 16.10 |
|
|
Flange
Drilling
|
: |
ANSI B 16.5 / BS 10 Table / DIN / IS 6392 |
|
|
Butt Weld End
|
: |
ANSI B 16.25 |
|
|
Socket Weld End
|
: |
ANSI B 16.11 |
|
|
Screwed End
|
:
|
ANSI B 1.20.1(BSP/NPT) |
|
|
|
|
Special
Options of Globe Valve: |
|
|
Extended Bonnet design for low temperature and cryogenic services.
|
|
|
Gland Seal Design (Water Seal) With Lantern Ring for Vacuum Application
|
|
|
Non-Rising Hand Wheel on special request
|
|
|
Bolted Bonnet / Pressure Seal Bonnet
|
|
|
Gear / Pneumatic Cylinder / Electrical Actuator Operated
|
|
|
Locking Arrangement
|
|
|
By Pass Execution
|
|
|
With NACE MR 0175
|
|
|
Other Material of Construction on Request
|
|
|
Position Indicator
|
|
|
Tailor Made Valve
|
|
|
 |
|
|
Globe
Valve Material
of Construction : |
|
Body & Bonnet |
Trims / Internal Working Parts |
|
|
Cast Iron to ASTM A 126 Class B
IS 210 GR. FG 200 / 220 / 260
|
|
|
Cast Carbon Steel to ASTM A 216
GR. WCB
|
|
|
Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M
|
|
|
Hast Alloy B / C
|
|
|
ASTM A 351 GR. CN 7M (Alloy 20)
|
|
|
|
AISI 410 (S.S. 410 13% Cr. Steel)
|
|
|
AISI 304 (S.S. 304)
|
|
|
AISI 316 (S.S. 316)
|
|
|
AISI 304L (S.S. 304L)
|
|
|
AISI 316L (S.S. 316L)
|
|
|
Hast Alloy B / C
|
|
|
ASTM A 351 GR. CN 7M (Alloy 20)
|
|
|
With Stellited Hard Face Seat &
Disc
|
|
|
Gasket |
Gland Packing
|
|
|
Compressed Asbestos Fiber Flat Ring
|
|
|
Graphite Asbestos Flat Ring
|
|
|
S.S. 304 / 316 / 304L / 316L Spiral Wound
With P.T.F.E. / CAF / Grafoil Filler
|
|
|
|
Graphite (Grafoil) Moulded Ring
|
|
|
Graphite Asbestos Rope
|
|
|
Inconel Braided Grafoil with Corrosion Inhibitor
|
|
|
|
|
|
|
Application
of Globe Valve: |
|
|
Power Plants & Process Industries
|
|
|
Petrochemical Plants & Refineries
|
|
|
Fertilizers Plants
|
|
|
Process & General Industries
|
|
|
|
Sugar Industries & Distillery Plants
|
|
|
Water, Steam, Gas, Oil & other Non-aggressive media
|
|
|
Other application on request
|
|
|
|
|
|
Please specify below details at the time of enquiries/orders: |
|
|
Types of Valve
|
|
|
Pressure
Rating Class
|
|
|
Valve Size
|
|
|
Type of
End Connection
|
|
|
Drilling
Standard, If Flanged End
|
|
|
Material
of Construction
|
|
|
Trims
(Internal) Parts Material
|
|
|
|
Flow Medium (Service)
|
|
|
Design Pressure
|
|
|
Operating (Working) Pressure
|
|
|
Design Temperature
|
|
|
Operating (Working) Temperature
|
|
|
Type of Operation Manual / Pne. / Ele. Etc.
|
|
|
|
|
|
|
