Double
Window Type Sight Glass - Double
Window Type Sight Flow Indicator |
|
Double
Window Type Sight Glass Manufacturer| Double
Window Type Sight Flow Indicator Manufacturers
Fully Jacketed Sight Glass (Sight Flow Indicator)
Manufacturers
Wide Range of Industrial Sight Glass & Sight Flow
Indicator Exporters India
Investment
Casting (I.C.) Body Stainless Steel 304/316/304L/316L/Alloy 20
Sight Glass Flow Indicator
Sight
Flow Indicator Manufacturing Range - 1"(DN 25) to
12" (DN 300) |
|
Dharmi Engineers manufactuers and exporters of Double Window Type
Sight Glass (Sight Flow Indicator) in Cast Construction &
Fabricated design to meet an industrial requirement of various
applications to inspect the process fluid.
In Double Window type Sight Flow Indicator (Sight Glass) Contains
Two Toughened Glasses Mounted opposite to each other. Dharmi Double
Window Type Sight Glass (Sight Flow Indicator) available with
various thickness and diameter of glass to suit various applications
respects to fluid pressure and temperature. Double Window Type Sight
Glass (Sight Flow Indicator) is very easy to replace glass without
dismantling the whole Sight Glass assembly from process line. Double
window type Sight Glass gives better performance in application of
Higher Pressure & Temperature.
Wide range of Toughen Glasses avaiable to suit industrial pressure.
All toughen glasses standard as per DIN 7080. Sight Glass body
material available ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A
351 GR. CF 8 (Stainless Steel 304), ASTM A 351 GR. CF 8M (Stainless
Steel 316), ASTM A 351 GR. CF 3 (Stainless Steel 304L), ASTM A 351
GR. CF 3M (Stainless Steel 316L), ASTM A 351 GR. CN 7M (Alloy 20)
and others on request. Body Hydraulic Test Pressure design up to 17
Kg./Cm2. We also manufacturing Jacketed Type Sight Glass & Steam
Jacketed Double Window Type Sight Flow Indicator. |
|

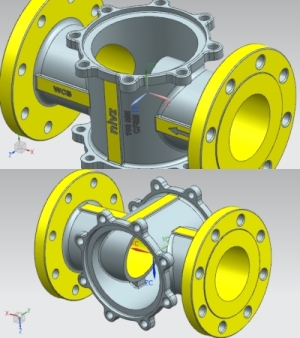

3D
Images of Double Window Type Sight Glass / Sight Flow
Indicator Body (100mm)


|
|

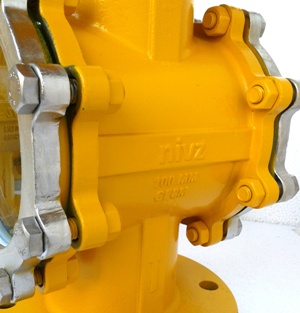

Double Window Type
Sight Glass
Double Window Type Sight Flow Indicator
Sight Glass, Sight Flow Indicator Manufacturers and Exporters
|
Various
Type of Sight Glass and Sight Flow Indicators |
|
|
|
|
| Fabricated
Body Sight Glass - Size Range up to 12" (DN 300) |
Flap
Type Sight Flow Indicator - Size Range up to 6" (DN
150) |
Ball
Type Sight Flow Indicator - Size Range up to 6" (DN
150) |
|
|

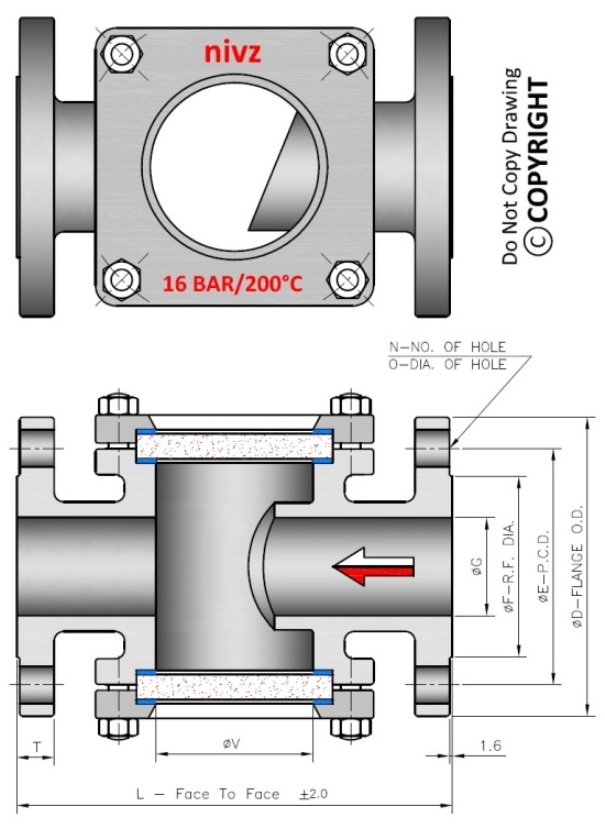

| Sight
Glass Dimension/Sight Flow Indicator Dimension:
Manufacturing Standard ASME B 16.34 |
Double
Window Type Sight Glass Sight Flow Indicator, Flanged
End, Pressure Rating - PN 16, Flanged End, RF
Flange
Drilling & Dimensions - As Per ANSI B 16.5, Class
150 (Other Standrad Drilling Available on Request) |
| Size
(INCH) |
1" |
1-1/2" |
2" |
2-1/2" |
3" |
4" |
5" |
6" |
8" |
| Size
(DN) |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
| Flange
to Flange |
160 |
200 |
230 |
290 |
310 |
350 |
--- |
480 |
600 |
| Flange
O.D. |
108 |
127 |
152.4 |
177.8 |
190.5 |
228.6 |
254 |
279 |
343 |
| Flange
PCD |
79.3 |
98.4 |
120.6 |
139.7 |
152.4 |
190.5 |
215.9 |
241.3 |
298.4 |
| R.F.
Dia. |
50.8 |
73 |
92.1 |
104.7 |
127 |
157.2 |
185.6 |
215.9 |
269.9 |
| No.
of Hole |
04 |
04 |
04 |
04 |
04 |
08 |
08 |
08 |
08 |
| Hole
Dia. |
15.8 |
15.8 |
15.8 |
19 |
19 |
19 |
19 |
22.2 |
22.2 |
| Glass
View Diameter |
48 |
65 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
|
|
|

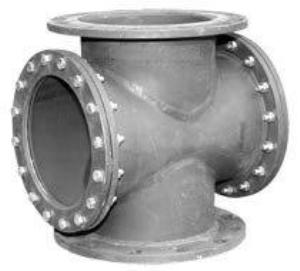

T and Angle Type Double Window
Fabricated Sight Glass
Fabricated Double Window Type Sight Flow Indicator
Sight Glass, Sight Flow Indicator Manufacturer and Exporter
VIEW
GLASS DIMENSIONS to DIN 7080
|
|
Dimensions
- Glass O.D. x Thickness (mm) |
Gasket
Inside Diameter (mm) |
Maximum
Working Pressure (bar) |
Dimensions
- Glass O.D. x Thickness (mm) |
Gasket
Inside Diameter (mm) |
Maximum
Working Pressure (bar) |
| 30 x 15* |
20 |
200 |
95 x 15* |
75 |
16 |
| 35 x 7* |
25 |
25 |
100 x 10* |
80 |
7 |
| 40 x 12* |
30 |
50 |
100 x 15 |
80 |
16 |
| 45 x 10 |
32 |
40 |
100 x 20 |
80 |
25 |
| 45 x 12 |
32 |
50 |
100 x 25 |
80 |
40 |
| 50 x 10 |
35 |
25 |
125 x 15 |
100 |
10 |
| 50 x 12 |
35 |
40 |
125 x 20 |
100 |
16 |
| 55 x 10* |
40 |
25 |
125 x 25 |
100 |
25 |
| 60 x 10 |
45 |
16 |
125 x 30* |
100 |
40 |
| 60 x 12 |
45 |
25 |
135 x 25 |
110 |
25 |
| 60 x 15 |
45 |
40 |
150 x 15* |
125 |
8 |
| 63 x 8* |
48 |
8 |
150 x 20 |
125 |
10 |
| 63 x 10 |
48 |
16 |
150 x 25 |
125 |
16 |
| 63 x 12 |
48 |
25 |
150 x 30 |
125 |
25 |
| 63 x 15 |
48 |
40 |
175 x 20 |
150 |
10 |
| 70 x 12* |
55 |
16 |
175 x 25 |
150 |
16 |
| 70 x 15* |
55 |
25 |
175 x 30 |
150 |
25 |
| 80 x 10* |
65 |
10 |
200 x 20 |
175 |
8 |
| 80 x 12 |
65 |
16 |
200 x 25 |
175 |
10 |
| 80 x 15 |
65 |
25 |
200 x 30 |
175 |
16 |
| 80 x 20 |
65 |
40 |
250 x 25 |
225 |
8 |
| 90 x 10* |
70 |
8 |
250 x 30 |
225 |
10 |
|
|
|
265 x 30 |
240 |
8 |
| * Supplementary to DIN |
|
|
|
|
|
Double
Window Type Sight Glass, Sight Flow Indicator Salient
Features & Option : |
|
|
Easy Maintenance
|
|
|
Available in all most all M.O.C. |
|
|
Manufactured to the Highest Standard
|
|
|
Durable Construction |
|
|
Tempered Borosilicate glass standard
|
|
|
Large View Area |
|
|
P.T.F.E. [Teflon®] FEP / PFA Lined Sight Glass
|
|
|
Fully Jacketed Double Window Type Sight Glass |
|
|
Special Face to Face Dimension
|
|
|
Sizes Range from 15MM To 200MM
|
|
|
Pressure Rating PN 10
|
|
|
Design & Testing As Per Mfg. Standard
|
|
|
End Connections as per ANSI B 16.5/BS 10 Table/DIN/IS / JIS Std.
|
|
|
Material Test Certificate & Pressure Test Certificates furnished on request.
|
|
|
Tailor Made Sight Glass
|
|
|
|
|
|
Double
Window Type Sight Glass, Sight Flow Indicator Design
& Testing International Standard : |
|
|
Design Std.
|
: |
ASME B 16.34 |
|
|
Pressure
Testing
|
: |
API 598 |
|
|
Face To Face
|
: |
Mfg. Standard |
|
|
Flange
Drilling
|
: |
ANSI B 16.5 / BS 10 Table /
DIN / IS 6392 / JIS |
|
|
Pressure
Rating
|
: |
125#, 150# |
|
|
Size Range
|
:
|
25mm
(1”) To 200mm (8”) |
|
|
|
|
Double
Window Type Sight Glass, Sight Flow Indicator Material
of Construction : |
|
|
Carbon Steel to IS 2062 (Fabricated Type) |
|
|
AISI 304 / 316 (Stainless Steel 304 / 316) |
|
|
AISI 304L / 316L (Stainless Steel 304L / 316L) |
|
|
ASTM A 216 GR. WCB (Cast Carbon Steel) |
|
|
ASTM A 351 GR. CF 8 / CF 8M / CF 3 / CF 3 |
|
Gasket
|
Glass
|
|
|
P.T.F.E. (Teflon ®) / CAF |
|
|
|
Tempered Borosilicate Glass
|
|
|
Fasteners
|
Jacket (Fabricated Type) |
|
|
Carbon
Steel |
|
|
ASTM A 193 GR. B7 / A 194 GR. 2H |
|
|
Stainless Steel 304L / 316L |
|
|
|
Carbon Steel to IS 2062
|
|
|
AISI 304 / 316 (Stainless Steel 304 / 316)
|
|
|
AISI 304L / 316L (Stainless Steel 304L / 316L)
|
|
|
|
|
|
Jacketed Double Window Type Sight Glass, Jacket Test is carried out at 6.0 Kg. /Cm2 |
|
|
|
|
Please
specify below details at the time of enquiries/orders: |
|
|
Types of Sight Glass (Sight Flow Indicator)
|
|
|
Sight Glass Size
|
|
|
Flange Drilling Standard |
|
|
Material of Construction |
|
|
Flow Medium (Service) |
|
|
|
Design Pressure
|
|
|
Operating (Working) Pressure
|
|
|
Design Temperature
|
|
|
Operating (Working) Temperature
|
|
|
|
|
|
Wide Range of Industrial Sight Glass & Sight Flow Indicator |
|
|
All Types
of Sight Glass (Sight Flow Indicator) Manufacturer
and Exporter
|
|
|
Cast Stainless Steel Sight Flow Indicator (Sight Glass)
Manufacturers and Exporters
|
|
|
Fabricated Sight Flow Indicator (Sight Glass) Suppliers &
Stockiest |
|
|
Tubular Type Sight Flow Indicator (Sight Glass) Manufacturer and
Exporter
|
|
|
Double Window Type Sight Flow Indicator (Sight Glass) Manufacturers
and Exporters
|
|
|
Full View Type Sight Flow Indicator (Sight Glass) Suppliers &
Stockiest |
|
|
Jacketed Type Sight Flow Indicator (Sight Glass) Manufacturer and
Exporter |
|
|
Tailor Made Sight Flow Indicator (Sight Glass) Manufacturers and
Exporters |
|
|
|
|
|
