Diaphragm
Valve |
|
A Weir Type Diaphragm Valve
Rising Stem, Non-Rising Hand Wheel

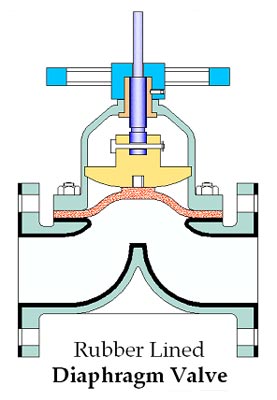

Rubber Lined Diaphragm Valve
P.T.F.E. Lined Diaphragm Valve |
|
Dharmi Engineers supplying Diaphragm Valves for different applications such as slurries, Viscous and corrosive substances, suspended solids and other hard to handle medium. Dharmi Diaphragm Valve having rugged design incorporating the best material available is proved by maintenance free operation. Dharmi Diaphragm valve design is very simply construction. The valve assembly has only three major parts such as Body, Bonnet & Diaphragm. In the diaphragm valve,
it's also very easy to replace the rubber diaphragm without dismantling body from the line.
Extra heavy duty casting affords high resistance to atmospheric corrosion. Dharmi diaphragm valve reduces diaphragm travel for extended service and fine control. |
|
|
|
“A” Weir Type
Flanged End, Diaphragm Valve |
|
|
|
|
A wide choice is available for body materials, body rubber lining, types of operation and body end connection to satisfy the need of most industrial application. Dharmi Engineers High quality standards are strictly followed, 100% valve being checked for size, design pressure, operation, Material of Construction, final finish etc. |
|
|
Design
& Testing International Standard : |
|
|
Valve Design
|
: |
BS 5156 |
|
|
Pressure
Testing
|
: |
BS 6755-I |
|
|
Flange
Drilling
|
: |
ANSI B 16.5 / BS 10 Table / DIN / IS / JIS Standard |
|
|
Butt Weld End
|
: |
ANSI B 16.25 |
|
|
Socket Weld End
|
: |
ANSI B 16.11 |
|
|
Screwed End
|
: |
ANSI B 1.20.1(BSP/NPT) |
|
|
Pressure Rating
|
: |
PN 10 |
|
|
Size Range
|
: |
15NB to 200NB |
|
|
Operation
|
:
|
Manual Hand Wheel Operated |
|
|
|
|
|
Pneumatic Cylinder Actuator Operated
|
|
|
Pneumatic Spring & Diaphragm Actuator Operated
|
|
|
With Position Indicator or Limit Switches
|
|
|
P.T.F.E. (PFA / FEP) Lined Diaphragm Valve
|
|
|
Polypropylene Material Diaphragm Valve
|
|
|
Tri-Clover End Diaphragm Valve
|
|
|
|
|
Material
of Construction : |
|
Body, Bonnet & Compressor |
Body Diaphragm
|
Body Lining
|
|
|
Cast
Iron to ASTM A 126 Class B
IS 210 GR. FG 200 / 220 / 260
|
|
|
Cast Carbon Steel to ASTM A 216 GR. WCB
|
|
|
Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M
|
|
|
|
Natural
|
|
|
EPDM
|
|
|
Ebonite
|
|
|
Neoprene
|
|
|
Hypalon ®
|
|
|
Butyl
|
|
|
P.T.F.E.
with above all rubber backings
|
|
|
|
Natural
|
|
|
Ebonite
|
|
|
Neoprene
|
|
|
Hypalon ®
|
|
|
Butyl
|
|
|
FRP
|
|
|
P.T.F.E. (FEP / PFA)
|
|
|
EPDM - Calcium, Magnesium & Silica Free
|
|
|
|
|
|
Body Size (NB) Thickness
|
Lining Hardness
|
|
|
15 to 65 3.0mm
|
|
|
80 to 100 3.5mm
|
|
|
125 to 150 4.0mm
|
|
|
200mm 5.0mm
|
|
|
|
Hard Rubber (Ebonite) – 950 + 5 Shore A
|
|
|
Soft Rubber – 650 + 5 Shore A
|
|
|
|
|
|
|
Fertilizer Plants
|
|
|
Water Treatment Plant
|
|
|
Waste Water Treatment Plant
|
|
|
Rayon Plant
|
|
|
Petrochemical Industries
|
|
|
Food Industries
|
|
|
|
Pharmaceuticals Industries
|
|
|
Sugar Plants
|
|
|
Chemical Industries
|
|
|
Thermal Power Stations
|
|
|
Other Process Industries
|
|
|
|
|
|
Please
specify below details at the time of enquiries/orders: |
|
|
Types
of Valve
|
|
|
Pressure Rating
Class |
|
|
Valve
Size |
|
|
Type of
End Connection |
|
|
Drilling Standard, If Flanged End |
|
|
Material of Construction |
|
|
Diaphragm Material |
|
|
|
Lining Material, If lined valves
|
|
|
Flow Medium (Service)
|
|
|
Design Pressure
|
|
|
Operating (Working) Pressure
|
|
|
Design Temperature
|
|
|
Operating (Working) Temperature
|
|
|
Type of Operation Manual / Pne. Etc. |
|
|
|
|
|
