Swing Type Check Valve - Non Return Valve

Bolted Cover Design, Flanged End Swing Check Valve Manufacturer
Suitable For Horizontal & Vertical Line Non Return Valve Manufacturers


Swing Type Check Valve
BS 1868 / API 6D Std.
Flanged End
Rating - 150# / 300#
Swing Check Valve Flanged End Non Return Valve Drawing Dimension Catalogue Download

What is Check Valve?

What is Non Return Valve?

What is NRV?

These types of valve (Non Return Valves) are used to stop back flow to the upstream side of the valve. The design of Check Valve (Non Return Valve) is very simple. A hinged door is placed inside the Swing Check Valve body. With the pressure coming upstream the door is held open; when pressure increases on the downstream side, it forces the door to valve close, stopping any back flow. Mostly all pump discharge line check valves being used. Swing type check valve is performing in vertical and horizontal both line. Lift check valve have have vertical and horizontal both type of design to suit as per line. Dharmi Engineers Flanged End, 150# & 300# Check Valves are Swing Check type and the 800# class check valves are Piston Type Lift Check Valves. The piston type valve works up and down providing a strong, firm seal under high pressure conditions.

Dharmi Engineers all check valves are self actuating type. Dharmi Engineers manufacturer & exporter of wide range of Industrial Check Valve (Non Return Valve).

_______________________________________________________________________________________________________________



Dharmi Engineers Swing Check Valves [Non Return Valves] are Swing Type and Bolted cover design Construction. The one piece disc construction is securely fastened to the hinge by means of a lock nut & pin. The Disc is free to rotating type to avoid any other wear. The hinge pin offers excellent wear resistance properties.

Swing Check valves also can be supplied with Titling disc design, Dash pot arrangement and outside lever & weight design for use where control of the disc is desires. Swign Check type Non Return Valves can be mounted on Horizontl & Vertical both line.

Dharmi Engineers also offer P.T.F.E. (PFA / FEP) Lined Ball Type / Y Type & Rubber Lined Flap Type Check Valves for high corrosive application.

Swing Type Non Return Valve Manufacturer India

Swing Type Check Valve Manufacturer India

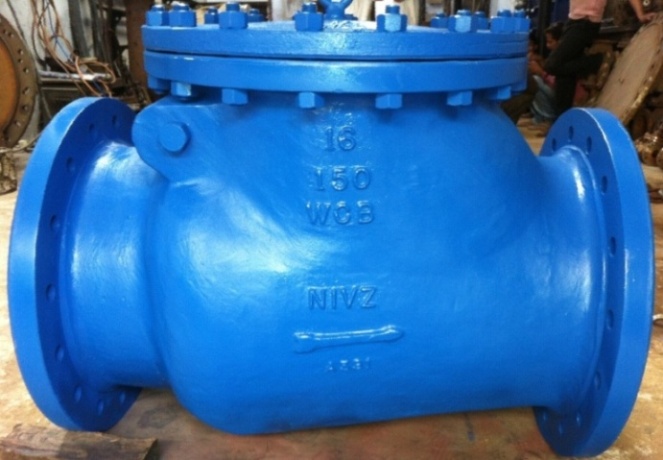

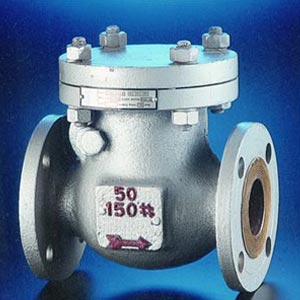

Swing Type Check Valve [Non Return Valve]
Bolted Cover Type,
Suitable for Horizontal & Vertical Both Line
Design Standard: BS 1868
Size Range - 1 to 24
Pressure Rating - 125# / 150# / 300#
End Connection Flanged End



Swing Check Valve Dimensions: Manufacturing Standard BS 1868
Swing Type Check Valve Dimensions - Bolted Cover, Flanged End (Non Return Valve)
Flange Drilling & Dimensions - As Per ANSI B 16.5, Class 150 (Other Standrad Drilling Available on Request)
Size (INCH) 1" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" 10" 12"
Size (DN) 25 40 50 65 80 100 125 150 200 250 300
F to F 127 165 203 216 241 292 330 356 495 623 699
Flange O.D. 108 127 152.4 177.8 190.5 228.6 254 279 343 406 483
Flange PCD 79.3 98.4 120.6 139.7 152.4 190.5 215.9 241.3 298.4 362 431.8
R.F. Dia. 50.8 73 92.1 104.7 127 157.2 185.6 215.9 269.9 323.8 381
No. of Hole 04 04 04 04 04 08 08 08 08 12 12
Hole Dia. 15.8 15.8 15.8 19 19 19 19 22.2 22.2 25.4 25.4
Swing Type Check Valve Dimensions - Bolted Cover, Flanged End (Non Return Valve)
Flange Drilling & Dimensions - As Per ANSI B 16.5, Class 300 (Other Standrad Drilling Available on Request)
Size (INCH) 1" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" 10" 12"
Size (DN) 25 40 50 65 80 100 125 150 200 250 300
F to F 203 241 267 292 317 356 400 445 533 623 711
Flange O.D. 124 155.4 165.1 190.5 209.5 254 279.4 317.5 381 444.5 520.4
Flange PCD 88.9 114.3 127 149.3 168.1 200.1 234.9 269.7 330.2 387.3 450.8
R.F. Dia. 50.8 73 92.1 104.7 127 157.2 185.7 215.9 269.9 323.8 381.0
No. of Hole 04 04 08 08 08 08 08 12 12 16 16
Hole Dia. 19 22.2 19 22.2 22.2 22.2 22.2 22.2 25.4 28.6 31.8
*** Contact Factory Fore More Size, More Rating, Other Standard Gate Valve Dimensions





Swing Check Valve - Non Return Valve Salient Features :

Body & Cover made from high quality casting with liberal sections. The castings are precision machined for high performance

Body Seat Ring & Disc machined to close Tolerances providing smooth action and accurate seating.

Seat Ring Screwed in to the body and replaceable type. Seal welded type Seat Ring & Integral Seat cab also be offered on special request.

Stellited Seat Ring & Disc also can be offered on special request.

In built wear life for long duration of service.

Swing Check Valve - Non Return Valve Design & Testing International Standard :

Valve Design

:

BS 1868 / API 6D

Pressure Testing

:

BS 6755-I

Face To Face

:

ANSI B 16.10

Flange Drilling

:

ANSI B 16.5 / BS 10 Table / DIN / IS / JIS Std.

Butt Weld End

:

ANSI B 16.25

Socket Weld End

:

ANSI B 16.11

Screwed End

:

ANSI B 1.20.1(BSP/NPT)

Swign Check Valve - Non Return Valve Material of Construction :

Body, Cover & Hinge Lever

Cast Iron to ASTM A 126 Class B
IS 210 GR. FG 200 / 220 / 260

Carbon Steel to IS 2062

Cast Carbon Steel to ASTM A 216 GR. WCB

Low  Carbon Steel to ASTM A 352 GR. LCB / LCC

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

Stainless Steel to AISI 304 / 316 / 304L / 316L

Hast Alloy B / C

        ASTM A 351 GR. CN 7M (Alloy 20)

Disc

Body Seat Ring

Cast Carbon Steel to ASTM A 216 GR. WCB + 13% Cr. Face

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

Stainless Steel to AISI 304 / 316 / 304L / 316L

Hast Alloy B / C

ASTM A 351 GR. CN 7M (Alloy 20)

ASTM A 105 with 13% Cr. Face

AISI 410 (S.S. 410 - 13% Cr. Steel)

AISI 304 (S.S. 304)

AISI 316 (S.S. 316)

AISI 304L (S.S. 304L)

AISI 316L (S.S. 316L)

Integral

Please specify below details at the time of enquiries/orders:

Types of Valve

Pressure Rating Class

Valve Size

Type of End Connection

Drilling Standard, If Flanged End

Material of Construction

Trims (Internal) Parts Material

Flow Medium (Service)

Design Pressure

Operating (Working) Pressure

Design Temperature

Operating (Working) Temperature

Type of Operation Manual / Pne. / Ele. Etc.

Wide Range of Industrial Swing Check Valve - Non Return Valve

Cast Iron Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

Cast Carbon Steel Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India

Cast Stainless Steel Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

Forged Steel Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India

Alloy Steel Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

Alloy 20 Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India

High Pressure Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

Swing Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India

Wafer Type Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

Disc Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India

Lift Type Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

Single Disc Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India

Rubber lined Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

P.T.F.E. lined Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India

Non-Slam Type Check Valve (Non Return Valve) Manufacturers, Exporters, Suppliers, India

Zero Leakage Check Valve (Non Return Valve) Manufacturer, Exporter, Stockiest, India
