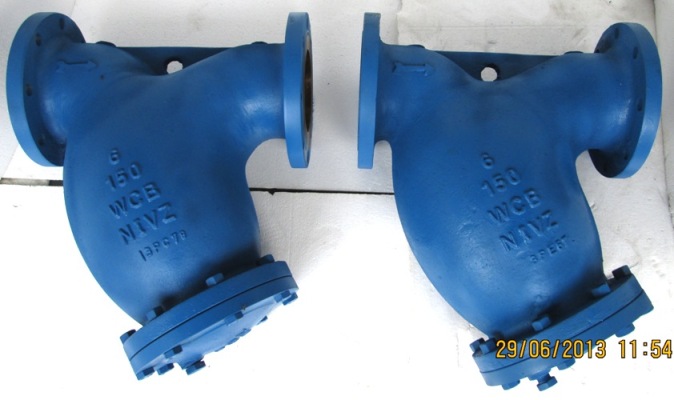

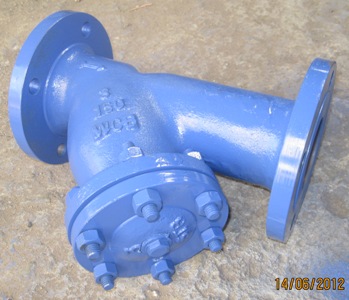

Y Type Strainer
Manufacturer, Bolted Cover Design
Y Type Strainer
Manufacturers, Drain Plug and Lower Pressure Drop Design
Flanged End / Screwed End / Socket Weld / Butt Weld End Y Type
Strainer Manufacturers
Screen Available from 2 mesh to 200 mesh (up to 50 microns)
Special on demand :
Rubber Lined Y Type Strainer,
PTFE Lined Y Type Strainer,
Jacketed Y Type Strainer,
Magnetic Type Y Strainer, Fabricated Y Type Strainer
Manufacturers & Exporters India
|
Ever
Ask You Below Questions To Your Supplier Before Buying
' Y' Strainer for Better Life & Health of Your
Plant ???
|
1.
What is Filtration Area across the Line for quoted strainer?
> We gives minimum 2.5 to 3 times Filtration Area in
our manufacturing Series of FCYS31/FCYS32. We can offer more
times filtration area Y Strainer on request. Large
Filtration area means = Less Pressure Drop (∆P), Less
Cleaning of Filter, Less Maintenance and Long Life of Filter
Element.
2.
What is Pressure Drop - Delta P for quoted strainer?
> We gives guarantee for maximum 0.2 to 0.4 bar pressure
drop for general application. Contact factory for special
media and very lesser pressure drop filter.
3.
Arrangement of Vent?
> Our design of Y Strainer have Vent Provision
through cover.
4.
Online Filter Cleaning Provision?
> We do provide a Ball Valve/Vent Valve at cover to
clean a strainer filter element online without open a cover
from body, which save your maintenance time. General practice
we provide Blind Plug at cover, vent valve provide on customer
request. Our arrangement of cover is bolting type so you can
easily dismantel from body.
5.
Is there provision to mount Differential Pressure Gauge?
> Our Y Strainer have provision to mount ∆P Gauge
to check a pressure drop and clog condition of filter element,
which can provide on request.
6.

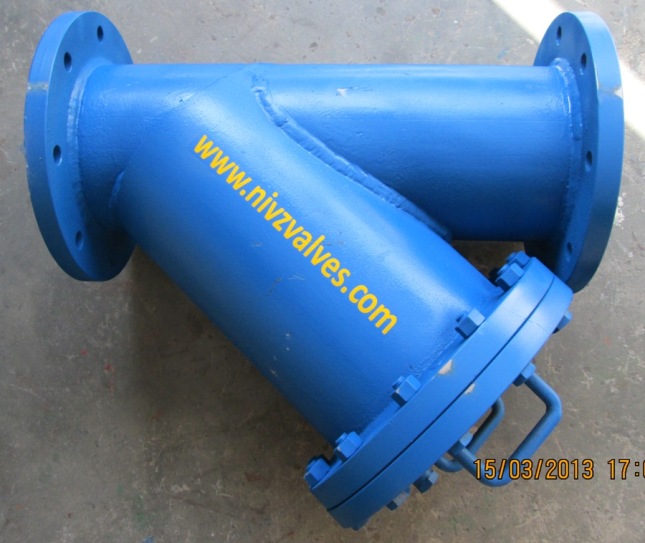

Bolted Cover design to easy open cover?
> Our manufacturing all type of strainer have only Bolted
Cover arrangement to open cover easily and no chance to
failure of thread of body.

What is Y Type Strainer?
This
product is designed for remove foreign matter from pipe lines
and provides protection for pumps, meters, valves, and other
similar mechanical equipment, which is called as Strainer.
“Y” Type strainers are named after their shape and
normally used for course filtration. But with large filtration
area can be used with fine mesh also. The strainer improves
the clearance in the medium, and prolongs the life of valves;
protect expensive pumps, meters and other equipments. It is
suitable for water, Air, Gas, petroleum, steam and other
fluids.
Dharmi Engineers manufacturers & exporters of wide range
of Industrial Strainer such as Y Type Strainer, Basket Type
Strainer, Pot Type Strainer, T Type Strainer, Simplex Type
Basket Strainer, Duplex Type Basket Strainer, Conical Inline
Strainer, Rubber lined Strainer, PTFE lined Strainer, Magnetic
Type Y Strainer etc.
_____________________________________________________________________________________________________________
The
Difference between Strainer & Filter
Actually
there isn’t any since a strainer is, in reality, a coarse
filter. The question is then one of semantics. Generally it is
assumed that if the particle to be removed is not visible to
the naked eye, the unit is filtering, and if the particle is
visible, the unit is straining. The average human eye can
detect a specific particle between 50 and 70 micros. Most
people cannot see anything smaller than 325 mesh, or 44
microns. Since 200 mesh is equivalent to 74 microns, a general
rule would be that if the screening device is coarser than 200
mesh, it is a strainer and if it is finer than 200 mesh it is
a filter.
One
of the best uses for a strainer is in conjunction with a
filter. By installing a strainer directly ahead of a filter,
the large heavy pieces which would quickly clog the filter are
removed. The filter is then free to do its major job of fine
particle removal and does not have to be cleaned so often
____________________________________________________________________________________________________________

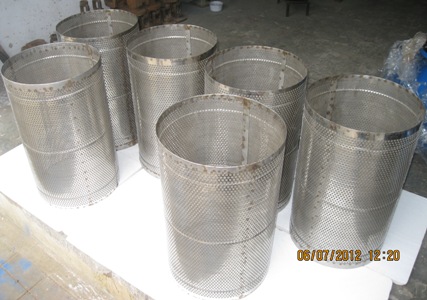

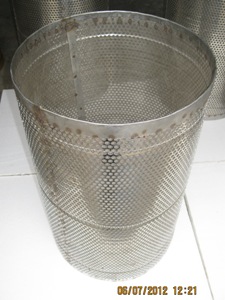

When to Clean Y Strainer Element?
Y
Strainer element should be cleaned on a regular basis,
not when they become clogged, to insure that they are not
damaged by too high a differential pressure. One more reason
for frequent cleaning is a phenomenon known as “runaway
buildup”. As dirt in a strainer accumulates and as the mesh
or perforations plug up, pressure drop increases. The curve of
this pressure difference is not a straight line. It starts out
as a low slope, but as the basket clogs more and more it turns
upward faster and faster. As the dirt builds up the free open
area in the basket gets smaller and smaller.
