Forged Steel Ball Valve

Forged Ball Valves Manufactures and Exporters

Forged High Pressure Ball Valve Manufacturers and Exporters

Three Piece Design, Regular Bore and Full Bore Forged Steel Ball Valve
Screwed / Socket Weld / Butt Weld End Forged Steel Ball Valve

Dharmi Engineers offer High performance Forged Steel Ball Valve as per international design and standard to get 100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service. These Ball Valves come in Three Piece Design (1/2 to 2) to suit various industrial critical, non-critical applications and pressure rating up to 800 class in regular (reduce) bore design. We also manufacturing special purpose Forged High Pressure Ball Valve suitable for 10000 psig pressure.

Dharmi Engineers P.T.F.E. seated Forged Steel Ball Valve gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20C. to +220C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

Forged Ball Valve body material choices are ASTM A 105 (Forged Carbon Steel), ASTM A 182 F 304 (Forged Stainless Steel 304), ASTM A 182 F 316 (Forged Stainless Steel 316L), ASTM A 182 F 304L (Forged Stainless Steel 304L), ASTM A 182 F 316L (Forged Stainless Steel 316L) and other grades can available on request.

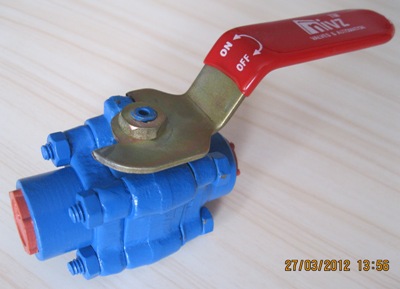

Forged Steel
Ball Valve

Rating - 800#
Lever Operated

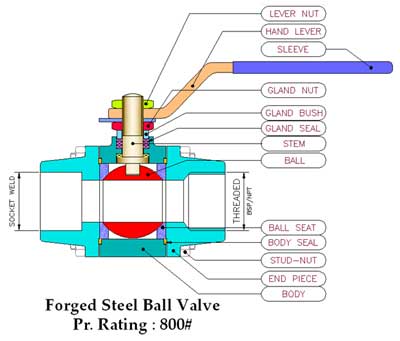

Forged Steel Ball Valve Drawing Dimension Catalogue Download



Forged Steel Ball Valve - Rating 800# / 1500#

Forged Steel Ball Valve Manufacturer Exporter in India

Forged Steel Ball Valve Manufacturers Exporters in India

Forged Steel Ball Valve Dimensions

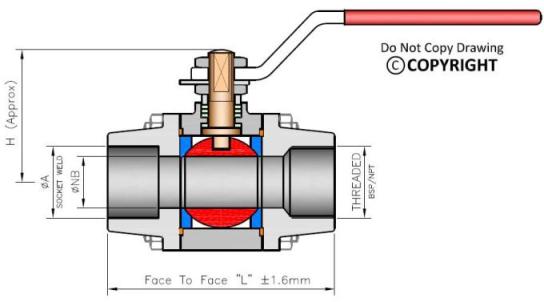

Forged Steel Ball Valve Drawing Dimension Diagram
Regular (Reduce) Bore Forged Ball Valve Dimensions - Rating 800#
Size  mm 15 20 25 32 40 50
Inch 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
L 72 87 92 115 115 127
A 21.7 27.1 33.8 42.7 48.6 61.1
NB 9 13.5 20 25 29 37
H 41 45 53 70 70 74
Full Bore Forged Ball Valve Dimensions - Rating 800#
Size  mm 15 20 25 32 40 50
Inch 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
L 87 92 115 127 127 ----
A 21.7 27.1 33.8 42.7 48.6 ----
NB 9 13.5 20 25 29 ----
H 45 53 70 74 74 ----

Forged Steel Ball Valve Body Seat, Seal & Gland Packing :

Dharmi Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.

We also offer a Forged Steel Ball Valve with Electro-Pneumatic Actuator Operated, Single Acting Spring Return Actuator Operated Forged Steel Ball Valve, Double Acting Pneumatic Acuated Forged Steel Ball Valve, Electrical Actuator operated Forged Steel Ball Valve, Motorized Forged Steel Ball Valve, High Pressure Ball Valve Manufacturers, Forged High Pressure Ball Valve suitable for pressure up to 10000 psig.

Our manufacturing range also covers a Fire Safe Design Forged Ball Valve. Our Ball Valves design is as per BS EN ISO 17292, Testing Standard as per API 607.

Forged Steeel Ball Valve Salient Features :

High Performance Ball Valve

Stronger Heavy Duty Construction

Longer Life

Low Operating Torque

Positive Shut off

Quick in Action

No Lubrication

Compact Design

Simplicity

Wide selection of M.O.C. & Trims

Forged Steel Ball Valve Design & Testing International Standard :

Valve Design

:

BS EN ISO 17292 (BS 5351) / ANSI B 16.34

Pressure Testing

:

BS EN 12266 - 1 (BS 6755 - II) / API 598

Face To Face

:

ANSI B 16.10

Butt Weld End

:

ANSI B 16.25

Socket Weld End

:

ANSI B 16.11

Screwed End

:

ANSI B 1.20.1(BSP/NPT)
