Flush Bottom Ball Valve

Single Piece Simple Design Flush Bottom Ball Valve Manufacturers
Flanged End Connection Flush Bottom Ball Valve Manufacturers
Manual Lever / Gear / Pneumatic Operated Flush Bottom Ball Valve Manufacturer

Dharmi Engineers offers a range of Flush Bottom Ball Valves. Dharmi Engineers Flush Bottom Ball Valves have been proven in service application for over 10 years Dharmi Engineers mfg. High performance Flush Bottom Ball Valve as per international design to get 100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service. Generally Flush Bottom Ball Valve body is modified by adding Inlet oversize flanges. As example: 2" x 3" Flush Bottom Ball Valve has the nominal bore of 2" (DN 50), the Inlet flange (Vessel Side) size is 3"(DN 80) and outlet flange size 2. It allows enough space for bolting clearance & insulation at vessel bottom flange.

Our manufacturing range of Flush Bottom Valve design is as per Fire Safe Design API 607, Solid Ball with ISO 5211 Mounting Pad Dimension and available in Steel Steel CF8/CF8M/CF3/CF3M/CN7M/WCB, SS 304/316/304L/316L/Alloy20/Hast Alloy/Cast Carbon Steel material. Flush Bottom Ball Valve with Motorized Electrical Actuator Operated and Pneumatic Actuator Operated also available with required accessories like Solenoid, Limit Switch, Filter Regulator, Relay, PID, Valve Positioner etc.

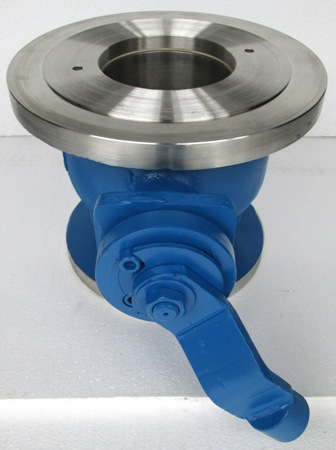

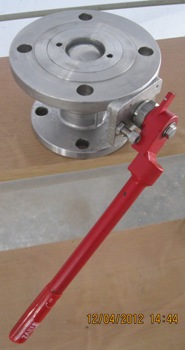

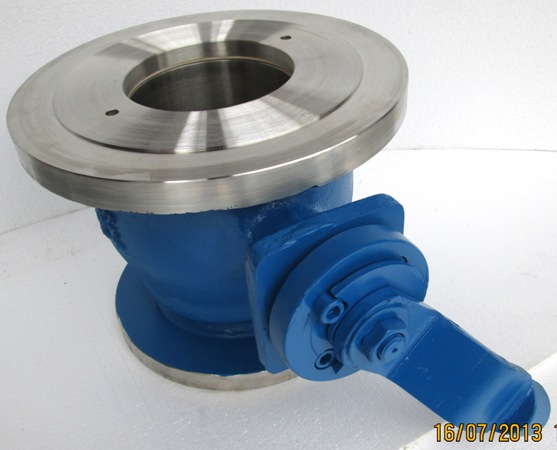

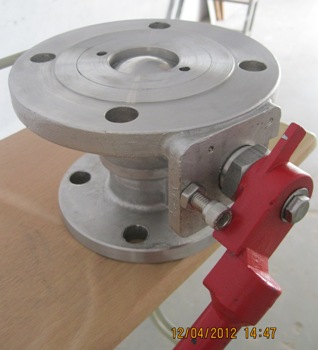

Flush Bottom Ball Valve
Rating - 150#
Hand Lever Operated
Flush Bottom Ball Valve Drawing Dimension Catalogue Download
Y Type Flush Bottom Valve
Rating - 150#
Hand Wheel Operated
Y Type Flush Bottom Tank Valve Drawing Dimension Catalogue Download

SS 304 316 304L 316L Alloy20 HastAlloy Flush Bottom Valve Manufacturers Exporter Supplier Stockiest in India
Flush Bottom Ball Valve Manufacturer Exporter in India, Tank Bottom ValvePneumatic Actuator Operated Flush Bottom Ball Valve Manufacturers Exporters in India
Flush Bottom Valve Manufacturer

At the time of enquiry and order below technical details & dimensions are must required, which is as under:

  • Center Bottom hole of Vessel

  • Vessel Bottom Flange Pad Thickness + Vessel Plate Thickness

  • Vessel Bottom Flange Drilling Standard

Generally standard Flush Bottom Ball Valves are used in carbon steel and different types of stainless steel materials. Other special materials are available upon special request.

Dharmi Engineers Flush Bottom P.T.F.E. seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20C. to +220C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

Flush Bottom Ball Valve Operation :

Dharmi Engineers Flush Bottom Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. Dharmi Engineers also offering Ball Valves with either Pneumatic operated for automation.

Our manufacturing range of Flush Bottom Ball Valve covers Pneumatic Actuator Operated Flush Bottom Ball Valve, Pneumatic Actuated Flush Bottom Ball Valve, Double Acting actuator operated Flush Bottom Ball Valve, Single Acting Spring Return actuator operated Flush Bottom Ball Valve, Remote operated Flush Bottom Valve, Fire Safe Design Flush Bottom Valve, Electrical Actuator Operated Flush Bottom Ball Valve, Motorized Flush Bottom Ball Valve, Gear operated Flush Bottom Ball Valve, Y Type Flush Bottom Tank Valve, Y Type Flush Bottom Valve, Jacketed Y Type Flush Bottom Tank Valve, Jacketed Flush Bottom Valve Manufacturers and Exporters India.

Wide Range of Body Seat, Seal & Packing :

Dharmi Engineers Flush Bottom Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.

Flush Bottom Ball Valve Salient Features :

High Performance Ball Valve

Stronger Heavy Duty Construction

Longer Life

Low Operating Torque

Positive Shut off

Quick in Action

No Lubrication

Compact Design

Simplicity

Wide selection of M.O.C. & Trims

Flush Bottom Ball Valve Design & Testing International Standard :

Valve Design

:

BS 5351 / ANSI B 16.34 / API 6D

Pressure Testing

:

BS 6755 Part II / API 598 / API 6D

Face To Face

:

Mfg. Standard

Flange Drilling

:

ANSI B 16.5 / BS 10 Table / DIN / IS 6392

Size Range

:

x 1 To 6 x 10

Flush Bottom Ball Valve Material of Construction :

Body / Insert

Stem

Cast Carbon Steel to ASTM A 216 GR. WCB

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

AISI 410 (S.S. 410 13% Cr. Steel)

AISI 304 (S.S. 304)

AISI 316 (S.S. 316)

AISI 304L (S.S. 304L)

AISI 316L (S.S. 316L)

Alloy 20 AISI 410 (S.S. 410 13% Cr. Steel)

Ball

Ball Seat / Gland Seal / Stem Seal

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

Hast Alloy B / C

ASTM A 351 GR. CN 7M (Alloy 20)

P.T.F.E. Virgin

P.T.F.E. Glass Filled

P.T.F.E. Carbon Filled
