Forged
Steel Globe Valves |
|
Bolted Bonnet, OS & Y Type, Rising Stem Globe Valve
Pressure Rating: 800# / 1500#
End Connection: Screwed / Socket Weld / Butt Weld End
Operation – Hand Wheel Operated |
|
Dharmi Engineers Forged Steel Gate Valves are Bolted Bonnet, outside screw and yoke type, Rising Spindle construction. Dharmi Engineers Forged Valves Body and bonnet made from high quality forgings.
Dharmi Engineers offer Forged Steel Globe Valves in size 1/2” (DN15) to 2” (DN50) to suit various critical, non-critical applications and pressure rating up to 1500 class in Regular (Reduce) bore & Standard (Full bore) design. |
|
|
|
|

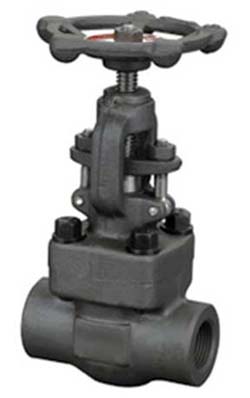

Forged Carbon Steel Globe Valve
OS & Y Type, Rising Stem, Bolted Bonnet
Design Standard: BS 5352
Pressure Rating: 800# // 1500#
Size Range: ½” to 2” // ½” to 1½”
End Connection – Screwed / Socket Weld / But Weld End |
|
|
Forged

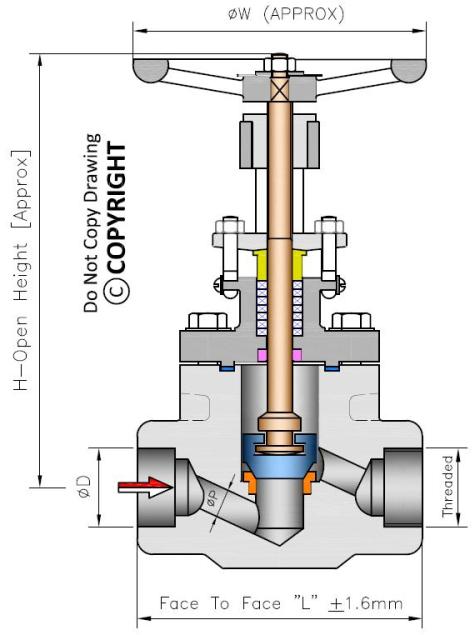

Steel Globe Valve Dimensions
|
Standard
Port
Forged Steel Globe Valve Dimensions - Rating 800# |
| Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
| Inch |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
| L |
85 |
92 |
106 |
122 |
122 |
140 |
| ØD |
21.7 |
27.1 |
33.8 |
42.5 |
48.6 |
61.1 |
| H |
165 |
173 |
192 |
254 |
254 |
275 |
| ØP |
9.5 |
12.7 |
17.5 |
23.8 |
28.5 |
36.5 |
| ØW |
95 |
95 |
95 |
150 |
150 |
150 |
|
|
|
|
Materials Temperature Withstand Capacity as per ANSI B 16.34 Standard |
|
ASTM A 105 from 0o C. to 425° C
ASTM A 182 GR. F22 from 0o C. to 593° C |
|
|
|
|
Design
& Testing International Standard : |
|
|
Valve Design
|
: |
API 602 / BS 5352 |
|
|
Pressure
Testing
|
: |
API 598 / BS 5146 |
|
|
Face To Face
|
: |
ANSI B 16.10 |
|
|
Butt Weld End
|
: |
ANSI B 16.25 |
|
|
Socket Weld End
|
: |
ANSI B 16.11 |
|
|
Screwed End
|
:
|
ANSI B 1.20.1(BSP/NPT) |
|
|
|
|
|
Body & Bonnet made from high quality forging. |
|
|
The Forgings are precision machined for high performance |
|
|
Leak Proof Body-Bonnet Joint With Spiral Wound Gasket |
|
|
Ground Finish Stem |
|
|
Self Aligning Two Piece Gland |
|
|
Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position. |
|
|
|
|
Material of Construction : |
|
Body & Bonnet
|
Trims (Internal Working Parts) |
|
|
ASTM A 105 (Forged Carbon Steel) |
|
|
ASTM A 182 F 304 / 304L (Forged Stainless Steel 304 / 304L) |
|
|
ASTM A 182 F 316 / 316L (Forged Stainless Steel 316 / 316L) |
|
|
ASTM A 182 F 11 / F 22 (Forged Alloy Steel) |
|
|
|
AISI 410 (S.S. 410 – 13% Cr. Steel)
|
|
|
AISI 304 (S.S. 304)
|
|
|
AISI 316 (S.S. 316)
|
|
|
AISI 304L (S.S. 304L)
|
|
|
AISI 316L (S.S. 316L)
|
|
|
Gasket
|
Gland Packing
|
|
|
S.S. 304 / 316 / 304L / 316L Spiral Wound
With P.T.F.E. / CAF / Grafoil Filler |
|
|
|
Graphite (Grafoil) Ring
|
|
|
Graphite Asbestos Rope with Inconel Wire
|
|
|
Cut Braided Graphite Ring
|
|
|
Inconel Braided Grafoil with Corrosion Inhibitor
|
|
|
|
|
|
|
Flanged End, Flange Welded to Body, Rating 150# / 300# / 600#
|
|
|
Butt Weld (Welded Neck) / Socket Weld / Screwed (BSP/NPT) Connection
|
|
|
Special Trims on Request
|
|
|
Stellited Hard Face Disc & Seat on request
|
|
|
Locking Device |
|
|
Position Indicator |
|
|
Other Material of Construction |
|
|
|
|
|
|
Power
Plants & Process Industries
|
|
|
Fertilizers Plants
|
|
|
Sugar Industries & Distillery Plants
|
|
|
Water, Steam, Gas, Oil & other Non-aggressive media
|
|
|
Other application on request
|
|
|
|
|
